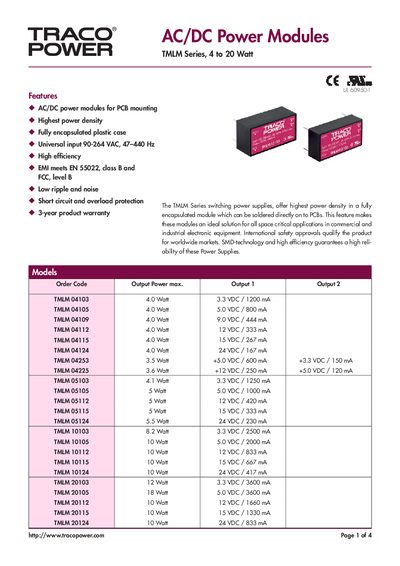

The TMLM Series switching power supplies, offer highest power density in a fully encapsulated module which can be soldered directly on to PCBs. This feature makes these modules an ideal solution for all space critical applications in commercial and industrial electronic equipment. International safety approvals qualify the product for worldwide markets. SMD-technology and high efficiency guarantees a high reli- ability of these Power Supplies.
The TMLM Series offers compact, fully encapsulated AC/DC power modules for PCB mounting. Features include universal 90‑264 VAC input, high efficiency, short‑circuit protection, and compliance with UL, IEC, EN, and FCC safety standards.
The handbook lists detailed input and output specifications, general performance data such as 75 % typical efficiency, isolation voltage of 3000 VAC, and mechanical details like dimensions, pin layout, and weight for each model variant.
| Input voltage range | 90‑264 VAC (universal) |
|---|---|
| Maximum output power | 4 W – 20 W |
| Typical efficiency | 75 % typ. |
| Isolation voltage (60 s) | 3000 VAC |
| Weight (example model) | 26 g (0.92 oz) |
The modules accept a universal input voltage range of 90 VAC to 264 VAC.
Typical efficiency is about 75 % depending on the model.
The series complies with UL 60950‑1, IEC/EN 60950‑1, EN 55022 class B, and FCC part 15 level B.
A typical module weighs about 26 g (0.92 oz).
