TBL series industrial power supplies are a new product range from Traco Power with power ratings from 15 to 150 W, an input voltage range of 85 to 264 VAC and an operating temperature range of -25°C to +70°C. The series is in compliance with UL 1310, NEC class 2 safety standards and UL508 certification and features short circuit and overload protection as well as a DC-OK indicator.
The TBL Series is a compact DIN‑rail mounted power‑supply range designed for building‑ and factory‑automation panels. It offers a low‑profile case (55 mm height), universal input voltage (85‑264 VAC) and adjustable output voltages, with safety class II compliance and UL listings.

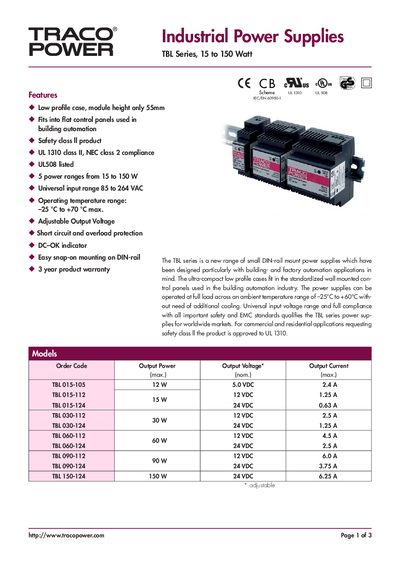

The three‑page handbook lists detailed input and output specifications, efficiency values, environmental limits, mounting options, and safety certifications, helping designers select the appropriate model for their application.
| Output Power Range | 15 W to 150 W |
|---|---|
| Input Voltage Range | 85 VAC – 264 VAC (nominal 100‑240 VAC) |
| Input Frequency | 47 Hz – 63 Hz |
| Output Voltage Adjustable Range | 5 VDC (5.0‑5.2 V) / 12 VDC (12‑16 V) / 24 VDC (24‑28 V) |
| Efficiency (230 VAC) | 73 % – 87 % |
| Operating Temperature Range | -25 °C to +70 °C |
| Case Protection Rating | IP20 |
| Safety Class | Class II |
The TBL Series accepts a universal input voltage from 85 VAC to 264 VAC, with a nominal range of 100 VAC‑240 VAC.
The units can operate from –25 °C up to +70 °C.
The series complies with UL 508, UL 1310, IEC/EN 60950‑1, EN 50178, EN 60204, EN 61558‑2‑8 and other listed standards.
