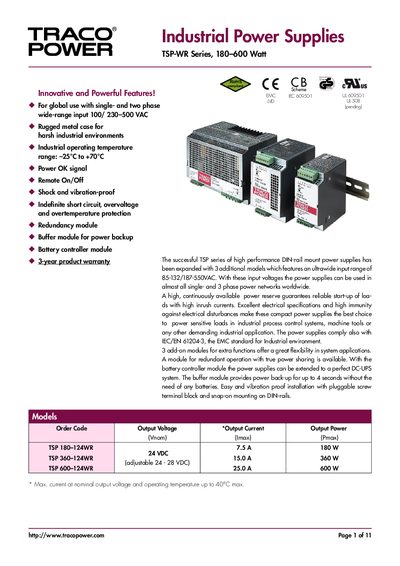

The TSP-WR Series industrial power supplies are from TracoPower, with power range of 180-600W, single- and two-phase wide-range input 100-230VAC, rugged metal case, industrial operating temperature range of -25°C to +70°C, power OK signal, remote On/Off, shock and vibration-proof, indefinite short circuit, overvoltage and overtemperature protection. It is suitable for industrial process control systems, machine tools and other industrial applications.
The TSP‑WR Series provides 180‑600 W DIN‑rail mounted power supplies with an ultra‑wide input range (85‑132 VAC / 187‑550 VAC) suitable for single‑ and three‑phase networks. Features include rugged metal housing, shock and vibration resistance, Power OK and Remote On/Off signals, and comprehensive protection against short‑circuit, over‑voltage and over‑temperature conditions. Optional redundancy, buffer, and battery‑controller modules add flexibility for critical applications.
Technical specifications are detailed, including input and output voltage ranges, efficiency, temperature limits, and compliance with IEC/EN and UL safety standards. The manual also describes mounting options (DIN‑rail, wall‑mount), dimensions, and accessories such as brackets and cables.
| Input voltage range | 85‑132 VAC / 187‑550 VAC 50/60 Hz |
|---|---|
| Output voltage adjustable range | 24‑28 VDC |
| Efficiency | 88 % typical |
| Operating temperature range | -25 °C to +70 °C |
| Isolation standards | IEC/EN 60950‑1, UL 60950‑1, UL 508 |
| Power OK signal voltage | 18‑22 V |
| Maximum output power | 600 W |
The series accepts 85‑132 VAC or 187‑550 VAC selectable by a selector switch, supporting 50 Hz or 60 Hz operation.
All TSP‑WR power supplies come with a three‑year product warranty.
The supplies provide indefinite short‑circuit, over‑voltage, and over‑temperature protection, plus shock and vibration resistance.
