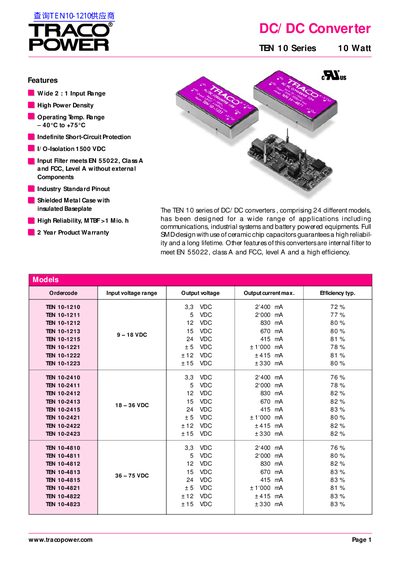

The TEN 10 series of DC/DC converters , comprising 24 different models, has been designed for a wide range of applications including communications, industrial systems and battery powered equipments. Full SMD-design with use of ceramic chip capacitors guarantees a high reliabil- ity and a long lifetime. Other features of this converters are internal filter to meet EN 55022, class A and FCC, level A and a high efficiency.
The TEN 10 series offers 10 W DC/DC converters with a wide 2:1 input voltage range, high power density, and indefinite short‑circuit protection. The converters are supplied in a shielded metal case with an insulated baseplate and meet EN 55022 Class A, FCC Level A, and various safety standards.
The document lists detailed input and output specifications, including voltage ranges, current limits, efficiency values, switching frequency, isolation voltage, and environmental limits such as operating temperature (‑40 °C to +75 °C) and humidity (95 % RH). Pinout diagrams, dimensions, and mechanical data are also provided.
| Input voltage range | Wide 2:1 |
|---|---|
| Output voltage (example model TEN 10-1210) | 2 VDC |
| Switching frequency | 300 kHz (typ.) |
| MTBF | >1 Mio. h |
| Operating temperature range | ‑40 °C to +75 °C |
The converters operate from –40 °C up to +75 °C.
The series uses a fixed switching frequency of 300 kHz (typ.).
