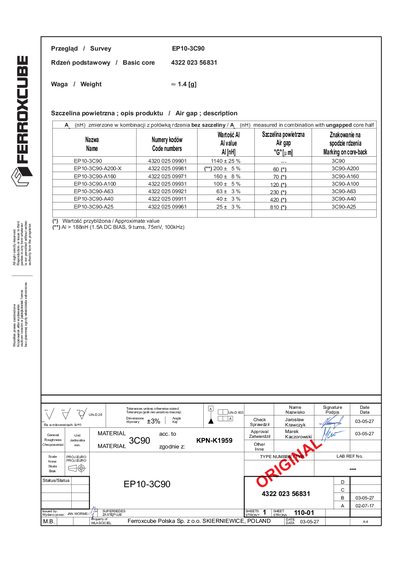

FERROXCUBE Przegl¹d Survey EP10-3C90 Rdzeñ podstawowy Basic core 4322 023 56831 Waga Weight 1.4 [g]

About this manual

This survey document describes the EP10-3C90 series magnetic cores produced by Ferroxcube. It lists the physical dimensions, air‑gap size, weight and marking information for each core variant.

Key magnetic properties are also given, including nominal frequency, induction field strength and saturation flux density, together with tolerances and approval signatures. This manual is written in Polish.

What's inside

• Dimensions
• Air Gap
• Weight
• Magnetic Properties
• Frequency and Induction
• Marking and Identification

Specifications

Frequently asked questions

What is the weight of the EP10-3C90 core?

The core weighs 1.4 g.

What is the air‑gap dimension of the EP10-3C90 core?

The air gap is specified as 6 µm.

What is the saturation flux density (Bsat) of the EP10-3C90 core?

The saturation flux density is greater than 320 mT.
