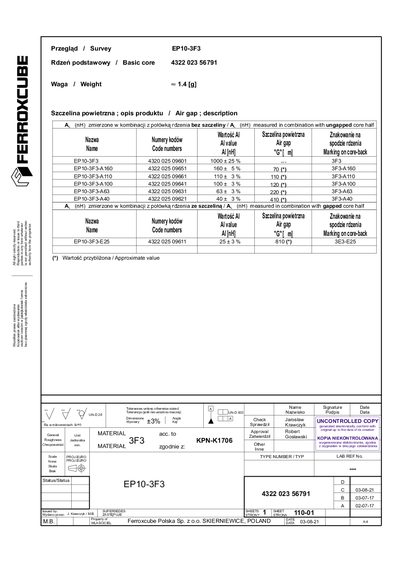

This document is a survey and description of the basic core EP10-3F3. The product weighs 1.4g and has a specific air gap.
The EP10-3F3 is a magnetic core offered by Ferroxcube with detailed dimensional and magnetic data. The document provides weight, core dimensions, air‑gap values and performance parameters such as frequency range and induction field strength.
Additional information includes marking codes for different variants, material approvals, tolerances and reference sheets for further details. This manual is written in Polish.
| Weight (variant 1) | 1.4 g |
|---|---|
| Weight (variant 2) | ~ 2.8 g/set |
| Weight (variant 3) | ~ 1.49 g |
| Core dimension A | 11.3 mm |
| Core dimension D (or Vo) | 215 mm |
| Saturation induction (Bsat) | > 315 mT |
The saturation induction (Bsat) is greater than 315 mT.
