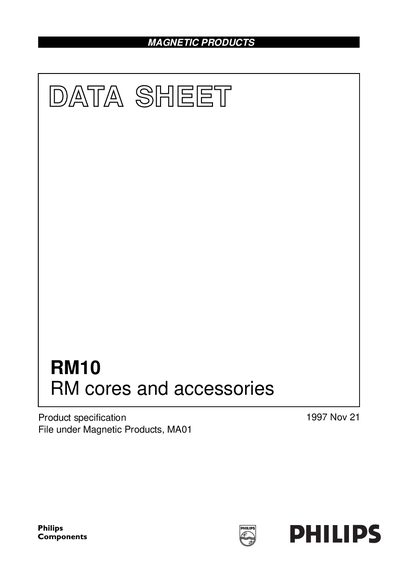

This document is about the specification of RM10 magnetic cores and accessories.
This data sheet describes the RM10 series of magnetic cores and related accessories offered by Philips. It includes effective core parameters, material details, and mechanical specifications for the various components.
The document lists core sets, inductance adjusters, coil formers, and mounting clips with their dimensions, material composition, operating temperature limits, and clamping forces. It also defines the status of the product and includes contact information for Philips worldwide.
| Core factor (C1) | 0.501 mm |
|---|---|
| Effective volume (Ve) | 3470 mm³ |
| Effective length (le) | 41.7 mm |
| Effective area (Ae) | 83.2 mm² |
| Minimum area (Amin) | 65.3 mm² |
| Mass of core set | ~20 g |
| Clamping force (core sets) | 60 ± 20 N |
| Inductance adjuster head material | Polypropylene (PP) |
| Inductance adjuster max temperature | 125 °C |
| Coil former material | Phenol‑formaldehyde (PF), glass‑reinforced, flame‑retardant |
| Coil former max temperature | 180 °C |
| Mounting clip clamping force | 30 N |
The RM10 core sets have a clamping force of 60 ± 20 N.
The head of the RM10 inductance adjuster is made of polypropylene (PP).
The coil former can operate up to 180 °C.
No, RM10 products are not designed for use in life‑support appliances or systems.
