The document describes the features and characteristics of the EP13-3F3 product, including weight, air gap, pressure rating, etc.

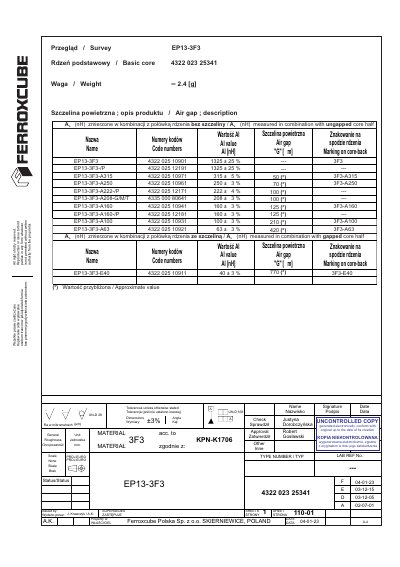

This document provides detailed technical data for the EP13-3F3 magnetic core produced by Ferroxcube. It is intended for designers and engineers who need precise core parameters for magnetic circuit design.
Key information includes inductance values measured with core halves, weight of the core (2.4 g) and per set (4.8 g), air‑gap condition (ungapped), dimensions, and the various marking codes used to identify the part. This manual is written in Polish.
| Weight (single core) | 2.4 g |
|---|---|
| Weight (set) | 4.8 g per set |
| Air gap | Ungapped |
| Marking code example | EP13-3F3-A315 |
The single EP13-3F3 core weighs 2.4 g.
A set of EP13-3F3 cores weighs 4.8 g.
The EP13-3F3 core is ungapped.
