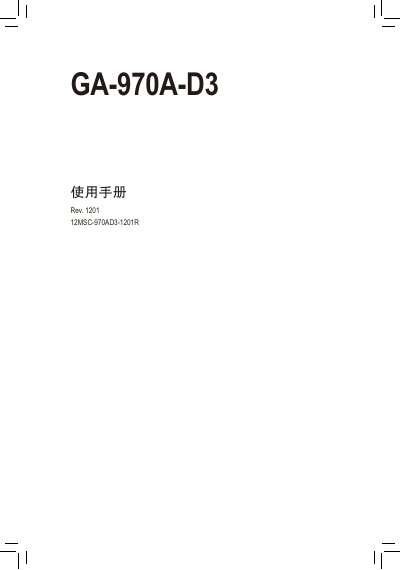

This is a user manual for GA-970A-D3 motherboard, which mainly introduces the hardware installation, BIOS settings and driver installation
This manual covers everything needed to install and operate the GA-970A-D3 motherboard. It starts with a checklist of accessories, then walks through hardware installation, CPU and cooler mounting, memory installation, and expansion‑card placement. Detailed safety warnings and anti‑static precautions are included.
Subsequent chapters describe BIOS settings, including the MIT frequency/voltage controls, power‑management options, and integrated peripheral configuration. The guide also explains driver installation, unique Gigabyte features such as Xpress Recovery2, Q‑Flash, EasyTune, and Cloud OC, and provides appendices for SATA configuration, audio I/O setup, troubleshooting, and warranty information. This manual is written in Chinese.
| Chipset | Northbridge AMD 970, Southbridge AMD SB950 |
|---|---|
| Memory slots | 4 DDR3 DIMM slots, up to 32 GB |
| Supported DDR3 speeds | 2000(O.C.)/1866/1600/1333/1066 MHz |
| LAN | Realtek/Atheros GbE 10/100/1000 Mbit |
| SATA ports | 6 SATA 6 Gb/s ports, supports RAID 0/1/5/10/JBOD |
