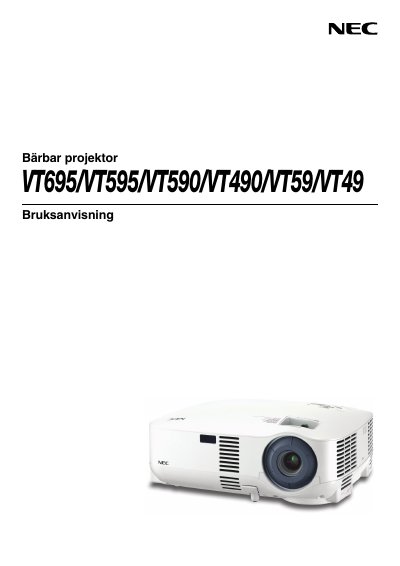

NEC VT695/VT595/VT590/VT490/VT59/VT49 Projector User Manual

This is the instruction manual for NEC's VT695/VT595/VT590/VT490/VT59/VT49 portable projector

Brand: NEC
Category: Projector
Document type: User Manual
Language: SV
Pages: 79
File format: PDF
File size: 3.3 MB
Published: 10 May, 2012
Updated: 30 September, 2023
Models: VT695, VT595, VT590, VT49, VT490, VT59
MD5 checksum: F7B533CF1699E24E03D7895E6ABD0404
PDF: NEC VT695/VT595/VT590/VT490/VT59/VT49 Projector User Manual PDF

About this manual

This manual provides safety instructions, installation guidelines, and connection details for NEC VT695, VT595, VT590, VT490, VT59 and VT49 projectors. It explains proper placement, power requirements, ventilation spacing, and tilt limits to ensure reliable operation.

The guide also describes how to project images, use the on‑screen menu, perform routine maintenance such as lamp replacement and filter cleaning, and outlines service procedures including the TravelCare program. This manual is written in Swedish.

What's inside

Introduction
Installation and Connections
Projecting an Image
Advanced Functions
Using the Screen Menu
Maintenance
Appendix

Specifications

Power Supply	100‑240 V AC, 50/60 Hz
Lamp Type	High‑pressure mercury lamp
Maximum Tilt Angle	10 degrees
Ventilation Clearance	Minimum 10 cm around the unit

Frequently asked questions

What power supply does the projector require?

It requires a 100‑240 V AC supply at 50 or 60 Hz.

How far should the projector be from surrounding walls for ventilation?

At least 10 cm of clearance should be left around the projector.

What is the maximum allowed tilt angle for the projector?

The projector must not be tilted more than 10 degrees.

What type of lamp is used in these NEC projectors?

They use a high‑pressure mercury lamp.
