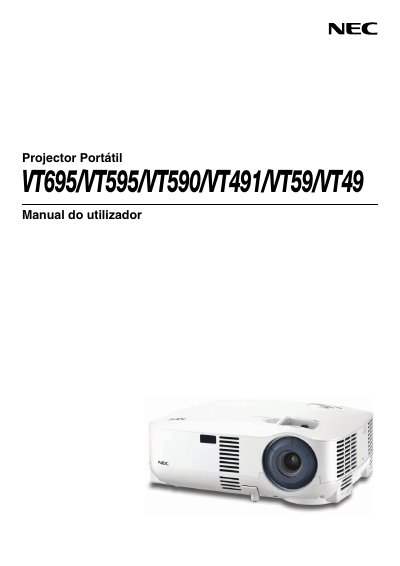

This document is the user manual for the portable projector models VT695/VT595/VT590/VT491/VT59/VT49 from NEC Display Solutions. The manual provides instructions, precautions, and safety measures for using the projector.
This manual begins with important safety and precautionary information, including ventilation requirements, power specifications, and handling warnings to prevent electric shock, fire, or damage to the projector. It also covers proper installation on stable surfaces or ceilings, and guidance on connecting power and video sources.
The later sections describe basic operation such as turning the projector on, selecting sources, adjusting image size and position, using the on‑screen menu, lamp replacement procedures, cleaning, and troubleshooting. An appendix provides specifications, connector pin‑outs, and a multilingual menu language selection guide. This manual is written in Portuguese.
Ensure adequate ventilation, keep air inlets unobstructed, maintain at least 10 cm clearance from walls, and avoid exposing the unit to rain or humidity.
Follow the instructions on page 52 and replace the lamp when the message “A lampada chegou ao fim do seu tempo de vida util” appears, avoiding contact with broken glass.
The projector operates on a 100‑240 V AC power source at 50/60 Hz.
