This document describes a black sleeve protector, model R280.560.000, suitable for cable diameter of 2.6mm, with a pack of 10 sleeves. The product is made of TEFABLOC TO CA 920 73 A material, with an operating temperature range of -50 to +125°C and a weight of 0.520 grams. Other characteristics include the color being black.
The Radiall R280.560.000 black sleeve protector is a cable protection component designed for 2.6 mm diameter cables. It belongs to the ACC‑COAX series and is supplied in packs of 10.

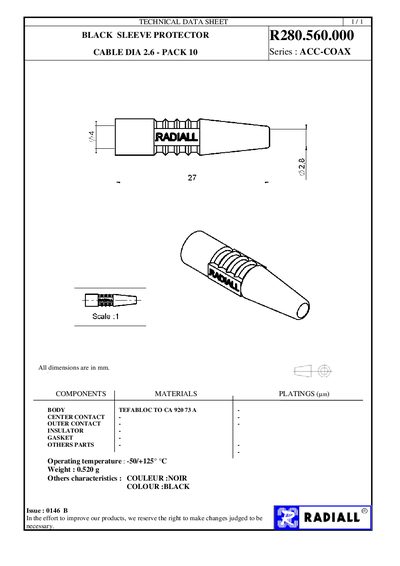

The data sheet lists key specifications such as overall dimensions, material composition, operating temperature limits, weight and colour. All dimensions are given in millimetres.
| Operating Temperature | -50 °C to +125 °C |
|---|---|
| Weight | 0.520 g |
| Color | Black |
It can operate from –50 °C up to +125 °C.
Each protector weighs 0.520 g.
The protector is black.
