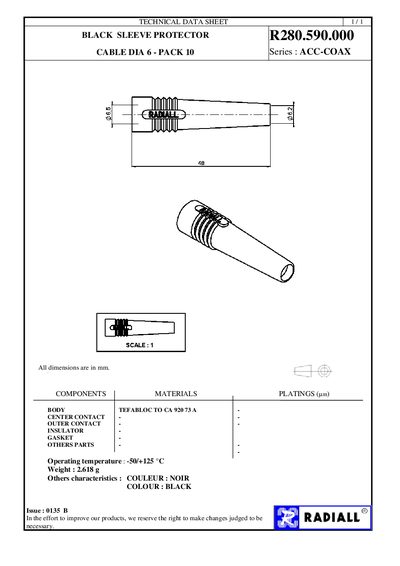

Radiall BLACK SLEEVE PROTECTOR R280.590.000 Technical Data Sheet
This technical data sheet provides the key specifications of the Radiall Black Sleeve Protector model R280.590.000. The protector is designed for a 6 mm cable diameter and is supplied in packs of 10.
The sheet lists the component materials, plating details, operating temperature range of –50 °C to +125 °C, weight of 2.618 g, and the black colour finish. An issue number (0135 B) is also noted.
Radiall R280 specifications
| Cable diameter | 6 mm |
|---|---|
| Operating temperature | -50 °C to +125 °C |
| Weight | 2.618 g |
| Colour | Black |
| Body material | TEFABLOC TO CA 92073 A |
Source: Radiall BLACK SLEEVE PROTECTOR R280.590.000 Technical Data Sheet
All Radiall R280 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the Black Sleeve Protector?
The protector operates from –50 °C up to +125 °C.
From: Radiall BLACK SLEEVE PROTECTOR R280.590.000 Technical Data Sheet
How much does one Black Sleeve Protector weigh?
Each protector weighs 2.618 g.
From: Radiall BLACK SLEEVE PROTECTOR R280.590.000 Technical Data Sheet
What cable diameter does the R280.570.000 sleeve protector fit?
It fits a cable diameter of 5 mm.
From: RADIALL BLACK SLEEVE PROTECTOR R280.570.000 CABLE DIA 5 - PACK 100 Series : ACC-COAX
What is the operating temperature range of the R280.570.000 sleeve protector?
The operating temperature range is -50 °C to +125 °C.
From: RADIALL BLACK SLEEVE PROTECTOR R280.570.000 CABLE DIA 5 - PACK 100 Series : ACC-COAX
What is the operating temperature range of the R280.560.000 sleeve protector?
It can operate from –50 °C up to +125 °C.
From: Radiall R280.560.000 Black Sleeve Protector Data Sheet
How much does one sleeve protector weigh?
Each protector weighs 0.520 g.
From: Radiall R280.560.000 Black Sleeve Protector Data Sheet
