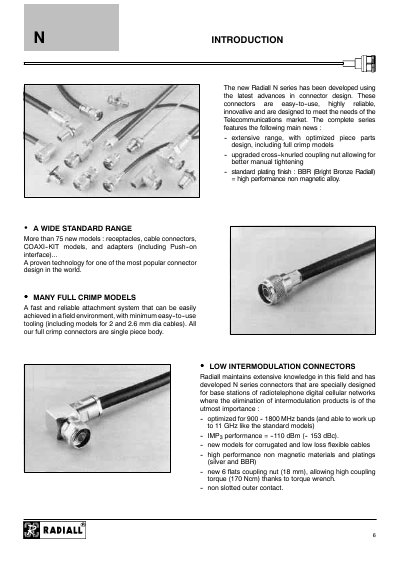

The Radiall N Series connectors are designed for the telecommunications market, offering an extensive range of receptacles, cable connectors, coax‑kit models and adapters. They feature optimized piece‑part designs, full‑crimp models, upgraded cross‑knurled coupling nuts and a standard Bright Bronze (BBR) plating for high‑performance non‑magnetic alloy.
The series is optimized for 900‑1800 MHz bands and can operate up to 11 GHz, providing very low intermodulation performance (IMP 3 = ‑110 dBm, ‑153 dBc). Options include straight or right‑angle plugs, flange and bulkhead jacks, crimp or clamp attachment types, and custom models to meet specific customer requirements.
| Standard plating finish | BBR (Bright Bronze Radiall) – high performance non magnetic alloy |
|---|---|
| Intermodulation performance (IMP 3) | -110 dBm (-153 dBc) |
| Coupling torque for 6‑flat nut | 170 Ncm |
| Frequency range | Optimized for 900‑1800 MHz, up to 11 GHz |
They are optimized for the 900‑1800 MHz bands and can operate up to 11 GHz.
The connectors achieve an IMP 3 performance of –110 dBm (‑153 dBc).
They use a Bright Bronze (BBR) plating, a high‑performance non‑magnetic alloy.
