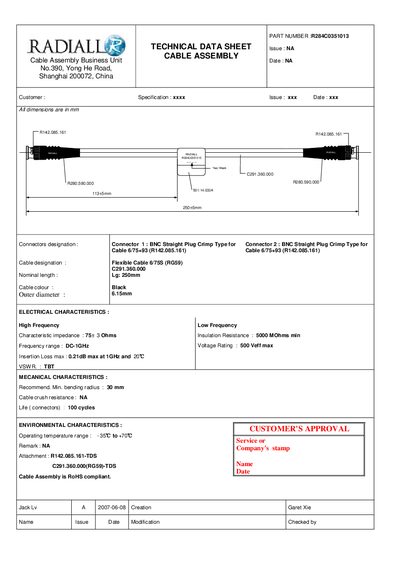

This document is a technical data sheet for the cable assembly part number R284C0351013. It provides information about the specifications, dimensions, connectors, electrical characteristics, mechanical characteristics, and environmental characteristics of the cable assembly.
This datasheet provides the specifications for the Radiall R284C0351013 cable assembly, including physical dimensions, connector types, and colour. The assembly uses a black 6.15 mm outer‑diameter flexible RG59 cable with BNC straight plug crimp connectors.
Electrical characteristics such as a 75 Ω±3 Ω characteristic impedance, DC‑1 GHz frequency range, and insertion loss values are listed, along with mechanical and environmental data like a minimum bending radius of 30 mm and an operating temperature range of –35 °C to +70 °C.
| Nominal length | 250 mm |
|---|---|
| Cable colour | Black |
| Outer diameter | 6.15 mm |
| Characteristic impedance | 75 Ω±3 Ω |
| Frequency range | DC‑1 GHz |
| Insertion loss (250 mm) | 0.21 dB max at 1 GHz |
| Insulation resistance | ≥ 5000 MΩ |
| Voltage rating | 500 V_eff max |
| Minimum bending radius | 30 mm |
| Operating temperature range | -35 °C to +70 °C |
The cable has a characteristic impedance of 75 Ω±3 Ω.
The cable assembly can operate from –35 °C up to +70 °C.
The connectors are rated for 100 mating cycles.
The insertion loss is up to 0.21 dB at 1 GHz for the 250 mm cable.
