This manual introduces application guidelines for ROHM semiconductor products, including circuit diagrams, application circuits, component selection, etc.

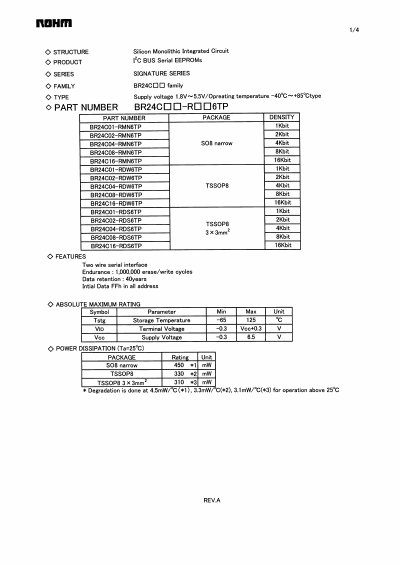

The BR24C01-RDS6TP is a 1‑Kbit serial EEPROM from ROHM's BR24C series, featuring a two‑wire I²C interface, 1 000 000 erase/write cycles endurance, and 40‑year data retention. It is supplied in SO8 narrow and TSSOP‑8 packages and operates over a wide voltage range.
The datasheet details recommended operating conditions (1.8 V–5.5 V, –40 °C to +85 °C), absolute maximum ratings, electrical characteristics such as input leakage and supply current, and mechanical dimensions for each package. Application notes and cautions for power‑up sequencing and thermal design are also included.
| Supply Voltage | 1.8 V – 5.5 V |
|---|---|
| Operating Temperature | -40 °C to +85 °C |
| Endurance | 1,000,000 erase/write cycles |
| Data Retention | 40 years |
The recommended supply voltage is 1.8 V to 5.5 V.
The EEPROM can endure up to 1,000,000 erase/write cycles.
Data is retained for up to 40 years.
The device operates from –40 °C to +85 °C.
