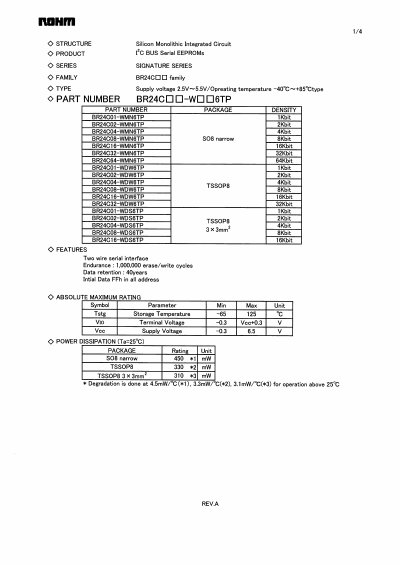

The BR24C01-WDS6TP is a 1‑Kbit serial EEPROM from ROHM, featuring a two‑wire I²C interface, 1 000 000 erase/write cycles, and 40‑year data retention. It operates from 2.5 V to 5.5 V and is rated for temperatures from –40 °C to 85 °C.
The document provides electrical characteristics, recommended operating conditions, pin assignments, package dimensions for SO8 narrow and TSSOP8 packages, and handling cautions. Contact information for ROHM sales offices worldwide is also included.
| Supply Voltage | 2.5 V – 5.5 V |
|---|---|
| Operating Temperature | -40 °C – 85 °C |
| Endurance | 1 000 000 erase/write cycles |
| Data Retention | 40 years |
| SO8 Narrow Package Size | 1.35 mm × 1.75 mm |
| TSSOP8 Package Size | 3 mm × 3 mm |
| Power Dissipation (TSSOP8) | 330 µW (typ) |
The device is specified for a supply voltage between 2.5 V and 5.5 V.
It can endure up to 1 000 000 erase/write cycles.
The data is retained for 40 years.
The part operates from –40 °C to 85 °C.
