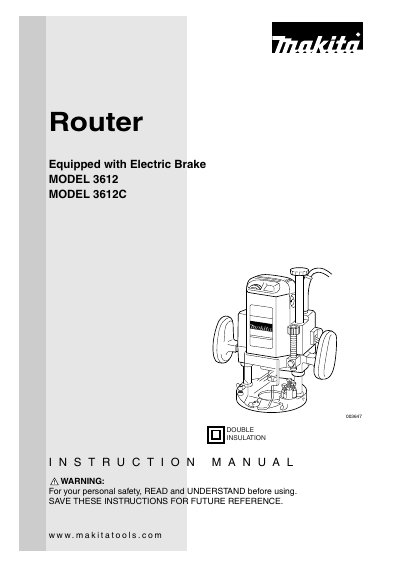

This is an instruction manual for the Makita 3612 model electric router
This manual covers safety guidelines, tool setup, and operation for the Makita 3612 router with electric brake. It includes detailed specifications, functional descriptions, and service information to help users work safely and maintain the tool.
Key sections explain adjusting depth of cut, speed selection, switch operation, and proper use of accessories. Service and warranty details are also provided for authorized repair and support.
| Collet chuck capacity | 1/2" |
|---|---|
| Plunge capacity | 0‑60 mm (0‑2‑3/8”) |
| No load speed (RPM) | 22,000/min (3612) / 9,000‑23,000/min (3612C) |
| Overall length | 324 mm (12‑3/4”) |
| Net weight | 6.0 kg (13.2 lbs) |
The electric brake stops the tool quickly when the switch lever is moved to the OFF position; if it does not stop promptly, the tool should be serviced at a Makita service center.
The speed adjusting dial provides five settings, numbered 1 to 5, corresponding to approximate speeds of 9,000, 12,000, 15,000, 19,000, and 23,000 RPM.
Operators should wear eye protection, a dust mask, non‑slip safety shoes, and hearing protection as appropriate; ordinary sunglasses are not sufficient.
