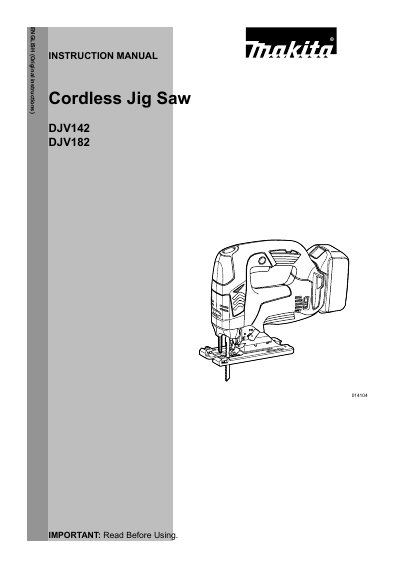

The Makita DJV142/DJV182 cordless jigsaw instruction manual provides safety guidelines, specifications, operation steps, and maintenance instructions.
This manual covers safety warnings, European directives, and general power‑tool safety for the Makita DJV142 and DJV182 cordless jigsaws. It details battery handling, charging procedures, and the tool’s protection system.
The document explains functional features such as cutting‑action selection, speed adjustment, blade installation, bevel cutting, dust extraction, and maintenance tasks, with clear step‑by‑step instructions and diagrams.
| Length of stroke | 26 mm |
|---|---|
| Maximum cutting capacity (Aluminum) | 20 mm |
| Strokes per minute | 800 – 3,500 min⁻¹ |
| Overall length (DJV142) | 264 mm |
| Net weight (DJV142) | 2.5 kg |
| Rated voltage (DJV142) | 14.4 V DC |
Turn the cutting‑action changing lever to the desired position (orbital or straight line).
Insert the blade with the teeth facing forward into the blade holder until it latches, then pull the blade lightly to confirm it is locked.
