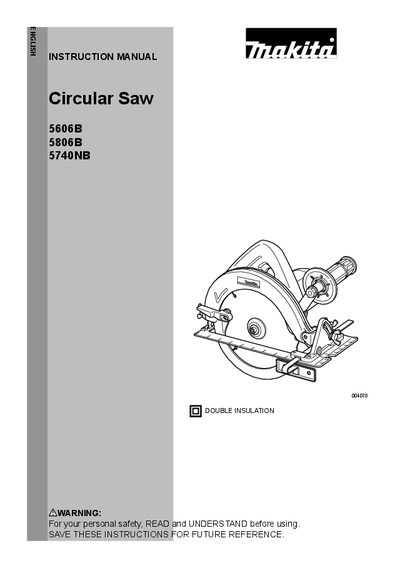

This file is the instruction manual of 5606B 5806B 5740NB circular saw
This manual covers the essential safety rules, specifications, and intended use of Makita circular saws 5606B, 5806B and 5740NB. It explains power‑supply requirements, double‑insulation protection, and the correct handling of the tool to prevent electric shock and injury.\n\nDetailed sections describe blade installation, depth and bevel adjustment, operation techniques, rip fence use, and routine maintenance. Service recommendations, part replacement, and troubleshooting tips are also included to help keep the saw performing safely and reliably.
| Blade diameter | 160 mm (5606B), 185 mm (5806B, 5740NB) |
|---|---|
| No‑load speed | 4 700 rpm (all models) |
| Overall length | 268 mm (5606B), 282 mm (5806B), 298 mm (5740NB) |
| Net weight | 3.1 kg (5606B), 3.5 kg (5806B, 5740NB) |
| Safety class | Double insulation |
The tool is intended for straight cuts and mitre cuts in wood, both lengthwise and crosswise.
The saw is classified as double‑insulated for safety.
The tool must be connected to a single‑phase AC supply of the same voltage shown on the nameplate.
