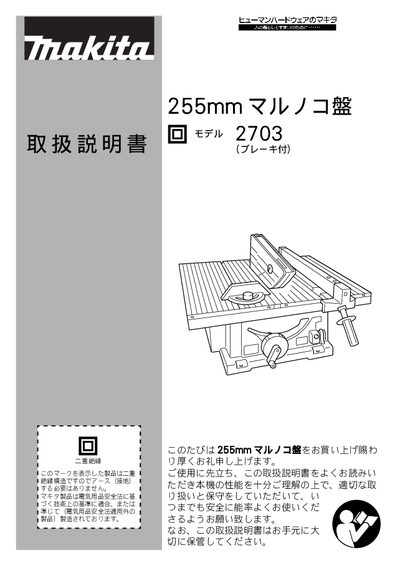

This is an instruction manual, which introduces the performance, main functions and precautions of a 255mm multi-tool
This manual explains the safe operation of the Makita 2703 circular saw, including required protective equipment, proper handling of the blade, and maintenance procedures. It also lists the standard accessories supplied with the tool and provides contact information for after‑sales service.
Technical specifications such as voltage, current, power consumption, speed, dimensions, and weight are detailed, along with guidelines for selecting appropriate extension cords and blade types. Users are advised to read all safety warnings before use and to keep the manual for future reference. This manual is written in Japanese.
| Voltage | 100 V AC single‑phase |
|---|---|
| Frequency | 50‑60 Hz |
| Power Consumption | 1430 W |
| No‑load Speed | 4,600 rpm |
| Outer Diameter | 255 mm |
| Blade Thickness (max) | ≤ 18 mm |
| Overall Dimensions (L×W×H) | 560 mm × 686 mm × 458 mm |
| Weight | 18 kg |
Use the voltage shown on the nameplate: 100 V AC single‑phase.
Only blades with a thickness of 18 mm or less may be used.
Wear safety glasses, a dust mask for dusty work, and hearing protection for loud operations.
