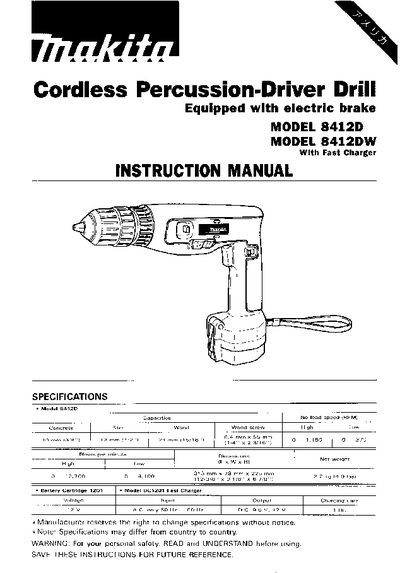

Cordless Percussion-Driver Drill, can drill concrete, steel, wood, with a maximum drilling diameter of 1 inch, a maximum torque of 370 inch pounds, equipped with electric brake function, standard 1201 battery and DC1201 fast charger, weighs 2.2 kg, dimensions 313mm x 79mm x 225mm
This manual begins with important safety instructions for using the cordless percussion‑driver drill, covering general workshop safety, proper handling of the tool, and precautions for the battery charger and cartridge. It also details how to install and remove the battery cartridge, how to change and secure drill bits, and the operation of the trigger, speed selector, and reversing switch.
Later sections describe maintenance procedures, recommended accessories, and part numbers for drill and driver bits. The specifications list dimensions, weight, no‑load speed, and battery charging times, helping users understand the tool’s capabilities and required accessories.
| No load speed (RPM) | Not specified in extracted text |
|---|---|
| Battery cartridge model | DC1201 (1200/1201) |
| Charging time (1200) | Approx. 45 min |
| Charging time (1201) | Approx. 60 min |
It takes approximately 60 minutes to fully charge a 1201 battery cartridge.
Move the reversing switch to the left for clockwise rotation or to the right for counter‑clockwise rotation, after the tool has stopped.
