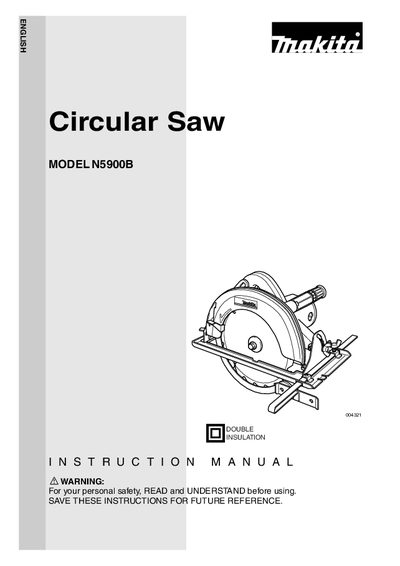

This is the instruction manual of circular saw, which introduces the functions, specifications, usage methods and precautions of circular saw.
This manual covers essential safety instructions, including proper work‑area setup, personal protective equipment, and safe handling of the saw. It also explains how to store the tool, maintain the blade, and avoid common hazards such as kickback and electric shock.
The document lists the saw’s technical specifications, describes the functional parts, and provides detailed assembly and adjustment procedures for depth of cut, bevel angles, and blade changes. It includes guidance on using the rip fence, side grip, and other accessories for accurate cuts.
| Blade diameter | 235 mm |
|---|---|
| Maximum cutting depth at 45° | 60 mm |
| Maximum cutting depth at 50° | 53 mm |
| No‑load speed | 4,100 rpm |
| Overall length | 380 mm |
| Net weight | 7.0 kg |
| Safety class | Bi |
The saw accepts blades with a maximum diameter of 235 mm and a minimum diameter of 230 mm.
The no‑load speed is 4,100 rpm.
Store the tool in a dry, high or locked‑up place, out of reach of children.
