This product is a glass passivated silicon rectifier produced by Rectron Semiconductor. The rated voltage is 50 to 800 volts and the rated current is 16 amps. It has low power loss, high efficiency, low forward voltage drop, low thermal resistance, high current capability, high surge capability and high reliability.
The RECTRON RL1601CS‑RL1606CS series are glass‑passivated silicon rectifiers covering a voltage range of 50 V to 800 V and a current rating of 16 A. The devices feature low forward voltage drop, low power loss, high surge capability and are supplied in a D2PAK molded‑plastic package.

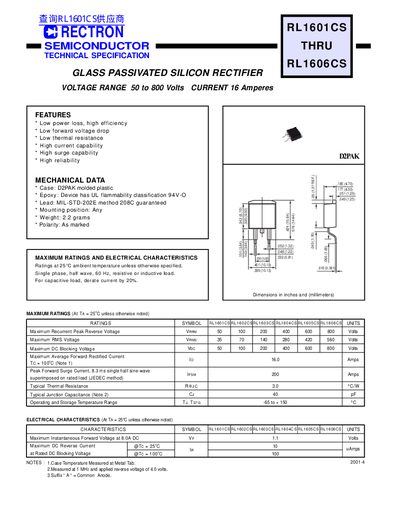

The datasheet provides detailed electrical specifications, maximum ratings, mechanical dimensions, and characteristic curves for forward current derating, junction capacitance and reverse voltage behavior. It also lists typical thermal resistance, junction capacitance and operating temperature limits.
| Voltage range | 50 to 800 Volts |
|---|---|
| Current rating | 16 Amperes |
| Case type | D2PAK molded plastic |
| Weight | 2.2 grams |
| Typical thermal resistance | 30 °C/W |
| Junction capacitance | 40 pF |
The voltage range is 50 V to 800 V.
They are supplied in a D2PAK molded plastic case.
The devices operate from –85 °C to +150 °C.
