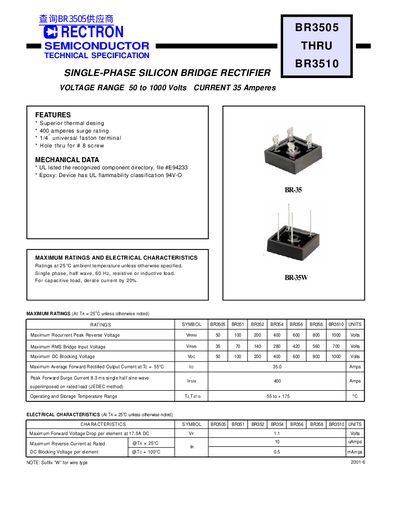

The document describes a single-phase silicon bridge rectifier with a voltage range of 50 to 1000 volts and a current of 35 amperes. It features superior thermal design, a 400 amperes surge rating, 1/4 universal faston terminal, #8 screw hole, and UL certification.
The Rectron BR3505‑BR3510 series are single‑phase silicon bridge rectifiers designed for voltages from 50 V up to 1000 V and continuous forward currents up to 35 A. They feature a 400 A surge rating, UL‑listed construction, and an epoxy body with a 94V‑O flammability classification.
The datasheet provides detailed electrical characteristics such as maximum recurrent peak reverse voltage, RMS bridge input voltage, DC blocking voltage, and forward voltage drop. It also includes characteristic curves for peak forward surge current, instantaneous forward current, and reverse voltage behavior across temperature ranges.
| Voltage range | 50 to 1000 V |
|---|---|
| Maximum recurrent peak reverse voltage (Vrrm) | 50‑1000 V |
| Maximum RMS bridge input voltage (Vems) | 36‑700 V |
| Maximum DC blocking voltage (Voc) | 50‑1000 V |
| Operating temperature range | 85 to +178 °C |
The series operates from 50 V up to 1000 V.
It is rated for operation from 85 °C up to +178 °C.
