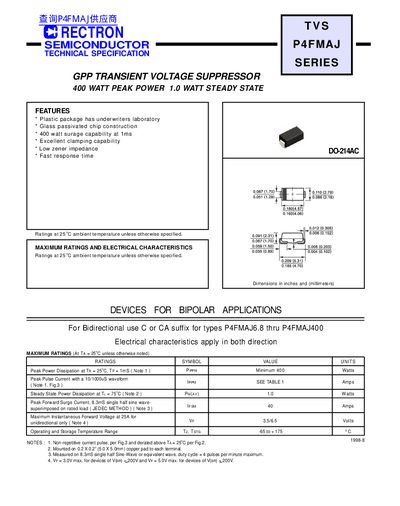

RECTRON P4FMAJ Series Transient Voltage Suppressor Datasheet

This document describes in detail the technical specifications of RECTRON SEMICONDUCTOR's P4FMAJ series, including the maximum power, rated voltage, rated current, working temperature range, and packaging size.

Brand: RECTRON
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 1 MB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: F8A418BFC288F41412560EA54248402E
PDF: RECTRON P4FMAJ Series Transient Voltage Suppressor Datasheet PDF

About this manual

This document provides technical specifications for the RECTRON P4FMAJ Series of Transient Voltage Suppressors (TVS). The devices are designed for bipolar applications with a 400 watt peak power capability at 1ms and feature a glass passivated chip construction within a plastic package.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Rating and Characteristic Curves
400W Series TVS Diodes Specifications

Specifications

Operating Temperature Range	-66 to + 175 C
Package Type	DO-214AC

Frequently asked questions

What is the peak power capability of the P4FMAJ series?

The series has a 400 watt surge capability at 1ms.

How should these devices be used for bidirectional applications?

Use the C or CA suffix for types P4FMAJ6.8 thru P4FMAJ400.

What is the maximum operating temperature?

The maximum operating and storage temperature is +175 C.
