This is a product manual that introduces the features and characteristics of the P6FMBJ series products. The series products are packaged in plastic and have a surge capacity of 600 watts and a response time of 1 millisecond.

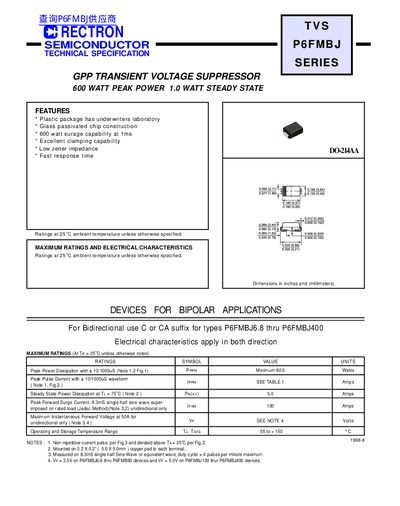

This document provides technical specifications for the RECTRON P6FMBJ series of Transient Voltage Suppressors (TVS). The devices are designed for bipolar applications with a 600 Watt peak power capability at 1ms and feature a plastic package with glass passivated chip construction. They are available in various breakdown voltage ratings from 6.8V to 400V.
| Peak Power Dissipation | 600 Watts |
|---|---|
| Steady State Power Dissipation | 1.0 Watt |
| Package Type | DO-214AA |
| Operating Temperature Range | -55 to +150 C |
| Peak Pulse Current | See Table 1 |
Use the C or CA suffix for types P6FMBJ6.8 through P6FMBJ400.
The maximum instantaneous forward voltage is 8.8V for lower voltage devices and 5.0V for higher voltage devices.
