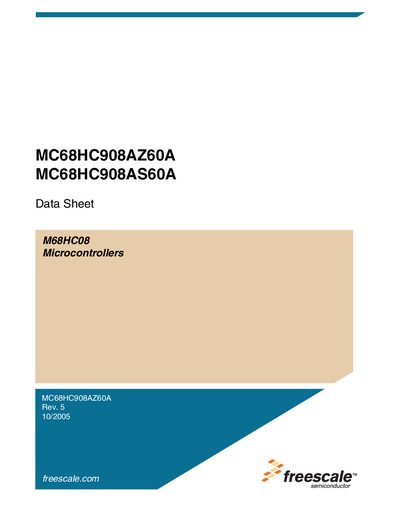

Freescale MC68HC908AZ60A MC68HC908AS60A Datasheet

About this manual

This datasheet provides detailed technical information for the Freescale MC68HC908AZ60A and MC68HC908AS60A 8‑bit microcontrollers. It includes a general description, memory map, flash and EEPROM sections, CPU details, peripheral modules, and electrical specifications.

The document is organized into chapters covering each functional block, such as FLASH‑1, FLASH‑2, EEPROM‑1, EEPROM‑2, ADC, BDLC, and MSCAN, as well as pin assignments and ordering information. Revision 5 (10/2005) is the current version, and the sheet notes RoHS compliance and licensing of SuperFlash® technology.

What's inside

• General Description
• Memory Map
• FLASH‑1 Memory
• FLASH‑2 Memory
• EEPROM‑1 Memory
• CPU
• Peripheral Modules
• Electrical Specifications
• Pin Assignments
• Ordering Information

Specifications

Frequently asked questions

What technology does the MC68HC908AZ60A incorporate?

It incorporates SuperFlash® technology licensed from SST.

Where can I find the most up‑to‑date version of this datasheet?

The latest revision is available on Freescale’s website; the web version is the most current.
