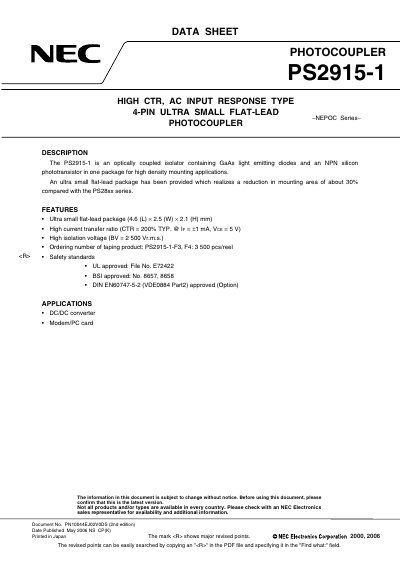

PS2915-1 is an optically coupled isolator containing GaAs light emitting diodes and an NPN silicon phototransistor in one package for high density mounting applications. An ultra small flat-lead package has been provided which realizes a reduction in mounting area of about 30% compared with the PS28xx series.
The PS2915-1 is an optically coupled isolator that combines a GaAs LED and an NPN phototransistor in an ultra‑small flat‑lead 4‑pin package, suited for high‑density mounting. It is intended for applications such as DC/DC converters and modem/PC cards.
The sheet lists mechanical dimensions, electrical characteristics, safety approvals (UL, BSI, DIN EN60747‑5‑2), and ordering options, along with recommended mounting pad dimensions and handling precautions for the GaAs material.
| Package size | 4.6 mm (L) × 2.5 mm (W) × 2.1 mm (H) |
|---|---|
| Typical current transfer ratio (CTR) | 200 % @ IF=1 mA, VCE=5 V |
| Isolation voltage | 2500 Vrms |
| Collector current (max) | 40 mA |
| Power dissipation (typical) | 60 mW |
| Operating ambient temperature range | -55 °C to +100 °C |
The PS2915-1 has a typical CTR of 200 % at IF = 1 mA and VCE = 5 V.
It is UL approved (File No. E72422), BSI approved (No. 8657, 8658) and DIN EN60747‑5‑2 approved.
The recommended pad dimensions are 0.8 mm × 0.6 mm × 1.27 mm.
The isolation voltage rating is 2500 Vrms.
