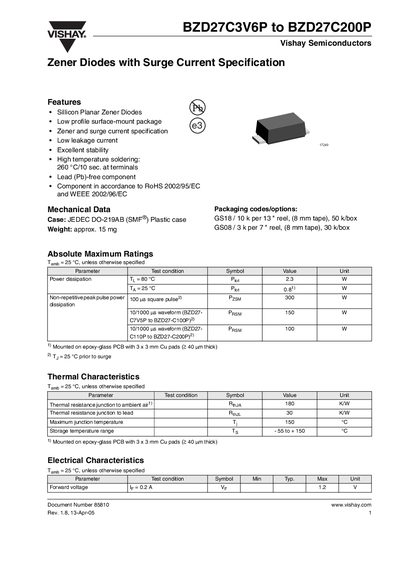

The document describes Zener diodes with models ranging from BZD27C3V6P to BZD27C200P. These diodes have features such as low power dissipation, low leakage current, excellent stability, and high-temperature soldering.
The BZD27 series Zener diodes from Vishay are silicon planar devices offered in a low‑profile surface‑mount package. The datasheet provides surge current specifications, low leakage, high temperature soldering capability and RoHS compliance.
Key information includes mechanical dimensions, absolute maximum ratings, thermal characteristics, electrical parameters for both voltage‑regulator and protection applications, as well as packaging codes and environmental policy statements.
| Case | JEDEC DO-219AB (SMF®) Plastic case |
|---|---|
| Weight | approx. 15 mg |
| Power dissipation (Tj=80 °C) | 2.3 W |
| Thermal resistance junction‑to‑ambient | 180 K/W |
| Maximum junction temperature | 150 °C |
| Forward voltage at If=0.2 A | 1.2 V |
| Packaging code (10 k per 13" reel) | GS18 |
The datasheet lists a non‑repetitive peak pulse power of up to 300 W for certain parts, with a 10/1000 µs 1 s square pulse test.
The storage temperature range is –55 °C to +150 °C.
The GS08 code provides 3 k per 7" reel (8 mm tape).
