The TS321 is a low power single operational amplifier that brings performance and economy to low power systems. It has a high unity gain frequency and a guaranteed 0.4V/μs slew rate, with a quiescent current of only 430μA/amplifier (5V). The input common mode range includes ground, allowing it to operate in single supply applications as well as dual supply applications. It is also capable of driving large capacitive loads. The TS321 is available in the SOT-25 package. Overall, the TS321 is a low power, wide supply range operational amplifier that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.
The TS321 operational amplifier offers low quiescent current (430 µA at 5 V) and a wide supply voltage range up to +32 V, making it suitable for both single‑supply and dual‑supply designs. It features a true‑differential input stage, short‑circuit protected outputs, and can drive large capacitive loads.

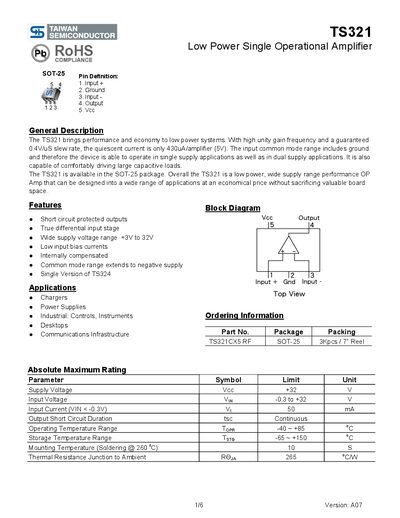

The datasheet provides full electrical characteristics, absolute maximum ratings, typical application circuits, and a mechanical drawing of the SOT‑25 package. It also includes compliance information and a notice regarding usage restrictions.
| Input Voltage Range | -0.3 V to +32 V |
|---|---|
| Quiescent Current | 430 µA per amplifier (5 V) |
| Slew Rate | 0.4 V/µs |
| Input Offset Voltage (typical) | 5 mV |
| Input Bias Current (typical) | 46 nA |
| Output Short‑Circuit Current | ≈40 mA (short duration) |
It draws only 430 µA per amplifier at a 5 V supply.
The amplifier has a slew rate of 0.4 V/µs.
