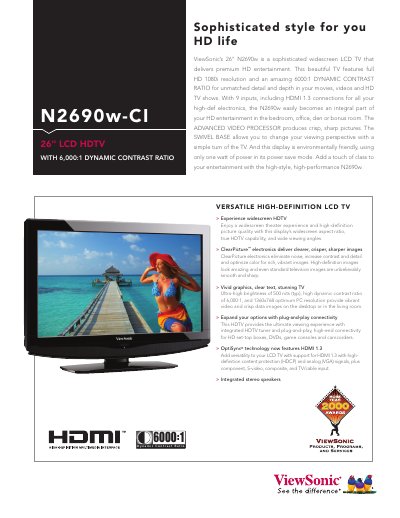

ViewSonic’s 26-inch N2690w is a sophisticated widescreen LCD TV that delivers premium HD entertainment. This beautiful TV features full HD 1080i resolution and an amazing 6000:1 DYNAMIC CONTRAST RATIO for unmatched detail and depth in your movies, videos and HD TV shows. With 9 inputs, including HDMI 1.3 connections for all your high-def electronics, the N2690w easily becomes an integral part of your HD entertainment in the bedroom, office, den or bonus room. The ADVANCED VIDEO PROCESSOR produces crisp, sharp pictures. The SWIVEL BASE allows you to change your viewing perspective with a simple turn of the TV. And this display is environmentally friendly, using only one watt of power in its power save mode. Add a touch of class to your entertainment with the high-style, high-performance N2690w.
This manual covers the features and operation of the ViewSonic N2690w 26" LCD HDTV, including its 6000:1 dynamic contrast ratio, 1080i full‑HD resolution, and a variety of input options such as HDMI 1.3. It also describes the swivel base, power‑saving mode, and built‑in stereo speakers.
Detailed specifications, physical dimensions, connection diagrams, menu navigation, and warranty information are provided to help users install, configure, and maintain the television safely and efficiently.
| Screen Size | 26" |
|---|---|
| Dynamic Contrast Ratio | 6000:1 |
| Resolution | 1366x768 (optimum) |
| Static Contrast Ratio | 800:1 (typ) |
| Brightness | 500 cd/m2 (typ) |
| Viewing Angles | 160° horizontal, 150° vertical |
| Response Time | 8 ms gray‑to‑gray (avg) |
| Light Source Life | 50,000 hrs (typ) |
| Power Consumption (typ) | 120 W |
| Power Save Mode | 1 W |
| HDMI Version | HDMI 1.3 with HDCP |
| Tuner Types | ATSC/NTSC/QAM |
| Speakers | 2 × 5‑W |
| Dimensions (with stand) | 25.6" x 18.9" x 7.4" |
| Weight (with stand) | 19.3 lb (8.8 kg) |
The TV provides a 6000:1 dynamic contrast ratio.
It supports HDMI 1.3 with HDCP and audio support.
Typical power consumption is 120 W.
A two‑year limited Express Exchange warranty covers parts, labor, and backlight.
