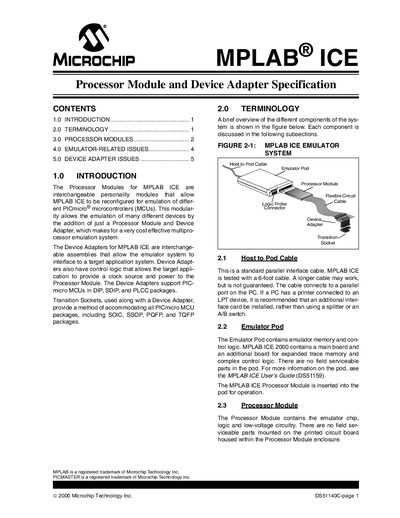

Microchip MPLAB ICE Processor Module and Device Adapter Specification

About this manual

The document describes the interchangeable processor modules and device adapters used with the MPLAB ICE emulator system. It explains how modules are inserted, how flex‑circuit cables connect, and the role of transition sockets for various PICmicro packages.

Key hardware information includes operating voltage ranges, current leakage limits, supported frequency ranges, and protection features such as ESD and freeze mode. The handbook also lists configuration options and mechanical switch assignments for a variety of device adapters.

What's inside

• Introduction
• Terminology
• Processor Modules
• Emulator‑Related Issues
• Device Adapter Issues
• Power and Voltage
• Operating Frequency
• Lock and Clock Options
• ESD Protection
• Freeze Mode

Specifications

Frequently asked questions

How much current leakage can occur from the Device Adapter?

Typical leakage is less than 20 mA.

What is the minimum frequency the Processor Modules support?

The minimum supported frequency is 32 kHz.

Can the Processor Module be powered by the target board?

Yes, the processor power can be supplied by the target application system via the Power tab in MPLAB IDE.
