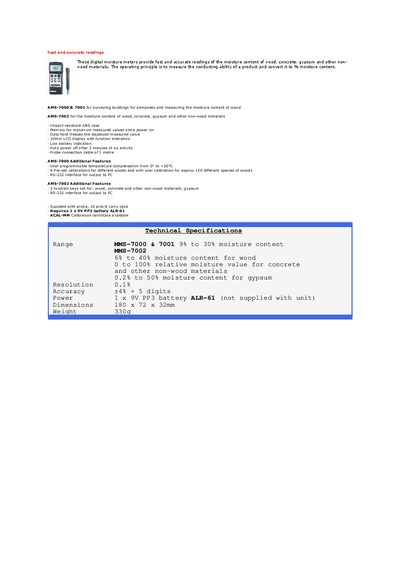

AMS-7000 & 7001 wood moisture meters are portable testing instruments for measuring the moisture content of wood, concrete, gypsum and other non-wood materials. The instrument consists of a smart control chip, data acquisition device, display screen, buttons, interfaces, etc. It can measure the conductivity of materials and convert it into % moisture content.
The AMS-7000 series offers rapid moisture measurement using conductivity, displaying results on a 30 mm LCD with function indicators. Features include memory of maximum values, data‑hold, low‑battery warning, auto power‑off, and a 1 m probe cable. Models AMS-7000/7001 target wood, concrete and gypsum, while AMS-7002 adds dedicated function keys for each material type.
Technical specifications list moisture ranges from 9 % to 30 % (MMS‑7000/7001) and 6 % to 40 % for wood (MMS‑7002), with additional ranges for concrete and gypsum. The device resolves to 0.1 %, operates on a 9 V PP3 battery, and measures 180 × 72 × 32 mm. Optional RS‑232 output and programmable temperature compensation enhance versatility.
| Moisture range (MMS‑7000/7001) | 9% to 30% moisture content |
|---|---|
| Moisture range (MMS‑7002 – wood) | 6% to 40% moisture content |
| Moisture range (MMS‑7002 – concrete) | 0 to 100% relative moisture value |
| Moisture range (MMS‑7002 – gypsum) | 0.2% to 50% moisture content |
| Resolution | 0.1 % |
| Accuracy | +4 % + 5 digits |
| Power source | 1 × 9V PP3 battery (ALR‑61, not supplied) |
| Dimensions | 180 × 72 × 32 mm |
The AMS-7000/7001 models measure moisture from 9 % to 30 % content.
It runs on a single 9 V PP3 battery (ALR‑61), which is not supplied with the unit.
Yes, the Data hold feature freezes the displayed measured value.
Both the AMS-7000 and AMS-7002 include an RS‑232 interface for PC output.
