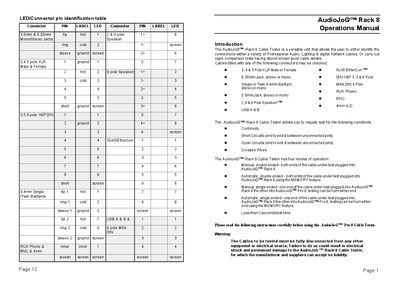

The AudioJoG(TM) Rack 8 Operations Manual introduces the AudioJoG(TM) Rack 8 Cable Tester's features and capabilities, which can be used to check the connections within a variety of professional audio, lighting and digital network cables, or to carry out rapid comparison tests using stored known good cable details.
The AudioJoG Rack 8 is a rack‑mountable (2U 19‑inch) cable tester that can verify continuity, shorts, opens and crossed wires on a wide range of professional audio, lighting and digital network connectors. It offers both manual and automatic testing modes, with single‑ended or double‑ended configurations, and stores cable details in memory for quick comparison.
The manual explains how to install the unit, connect power, and run the various test methods. It describes the LED indicators for each pin, how to interpret straight‑through and crossed‑wire results, and how to clear the memory function. Safety warnings emphasize disconnecting cables from any power source before testing.
| Rack size | 2U 19 inch |
|---|---|
| LED rows | 2 rows of 9 LEDs |
| Test time | Less than 2 seconds |
Cables must be fully disconnected from any equipment or electrical source to avoid electric shock and damage to the tester.
Turn the unit off and on again, or press and hold the TEST button until the MEMORY LED turns off.
