AD9760 is a 10-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs).
The AD9760 belongs to Analog Devices' TxDAC family of high‑performance, low‑power CMOS digital‑to‑analog converters. It offers a 10‑bit resolution, up to 125 MSPS update rate, and a flexible single‑supply range of 2.7 V to 5.5 V, making it suitable for communication, DDS, instrumentation and other high‑speed applications.

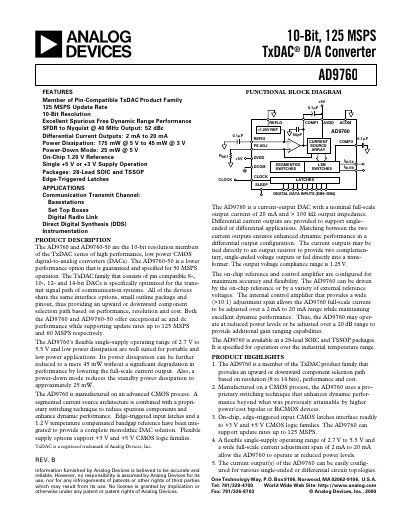

The datasheet provides full electrical specifications, pin configuration, absolute maximum ratings, ordering information and typical AC characterization curves. It also includes thermal characteristics, ESD handling notes, and an ordering guide for the available SOIC and TSSOP packages.
| Resolution | 10 Bits |
|---|---|
| Full‑Scale Output Current | 20 mA |
| Output Compliance Range | 1.25 V |
| Output Resistance | 100 kΩ |
| Reference Voltage (on‑chip) | 1.20 V |
| Small Signal Bandwidth (no C_COMP1) | 41.4 MHz |
The nominal full‑scale output current is 20 mA.
In power‑down mode the device draws approximately 25 mW.
