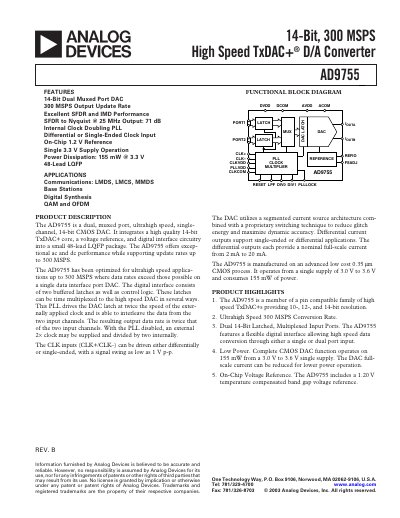

AD9755 is a dual, muxed port, ultrahigh speed, single- channel, 14-bit CMOS DAC.
The AD9755 is a dual‑port, 14‑bit CMOS DAC designed for ultrahigh‑speed applications. It integrates a high‑quality TxDAC+ core, on‑chip 1.20 V reference, and digital interface circuitry in a 48‑lead LQFP package. The device supports a maximum output update rate of 300 MSPS and provides differential current outputs ranging from 2 mA to 20 mA.
The converter operates from a single 3.0 V to 3.6 V supply, consuming only 155 mW at typical conditions. It offers excellent spurious‑free dynamic range and low distortion, making it suitable for communications, digital synthesis, and high‑speed data conversion tasks.
| Resolution | 14 bits |
|---|---|
| Maximum Output Update Rate | 300 MSPS |
| Supply Voltage Range | 3.0 V – 3.6 V |
| Full‑Scale Output Current | 20 mA (typical) |
| Power Dissipation | 155 mW @ 3.3 V |
The AD9755 can update its output at up to 300 MSPS.
It operates from a single supply voltage between 3.0 V and 3.6 V.
Typical power dissipation is 155 mW when powered at 3.3 V with a full‑scale output current of 20 mA.
The device provides a full‑scale output current of up to 20 mA (typical).
