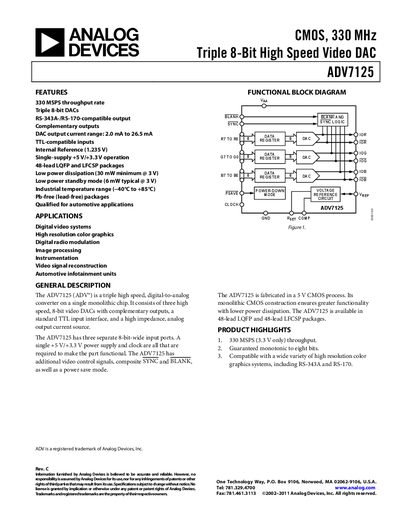

The CMOS, 330 MHz Triple 8-Bit High-Speed Video DAC ADV7125 Rev. C is a high-performance digital-to-analog converter with features including 330 MSPS throughput rate, three 8-bit DACs, RS-343A / RS-170 compatible output, etc.
The ADV7125 is a triple high‑speed 8‑bit video DAC that integrates three DACs, complementary outputs, TTL‑compatible inputs and a high‑impedance analog output current source on a single monolithic chip. It operates from a single +5 V or +3.3 V supply and offers low power dissipation and an industrial temperature range.
The device is intended for digital video systems, high‑resolution color graphics, automotive infotainment units and other video signal reconstruction applications. Ordering information, package options and automotive‑qualified versions are listed in the final sections of the data sheet.
| Resolution per DAC | 8 Bits |
|---|---|
| DAC output current range | 2.0 mA to 26.5 mA |
| Supply voltage | +5 V / +3.3 V single‑supply |
| Power dissipation (minimum) | 30 mW @ 3 V |
| Operating temperature range | -40 °C to +85 °C |
| Package types | 48‑lead LQFP and LFCSP |
The device can source 2.0 mA to 26.5 mA per DAC.
It operates from a single +5 V or +3.3 V supply.
Yes, the device is qualified for automotive applications.
The part is offered in 48‑lead LQFP and 48‑lead LFCSP packages.
