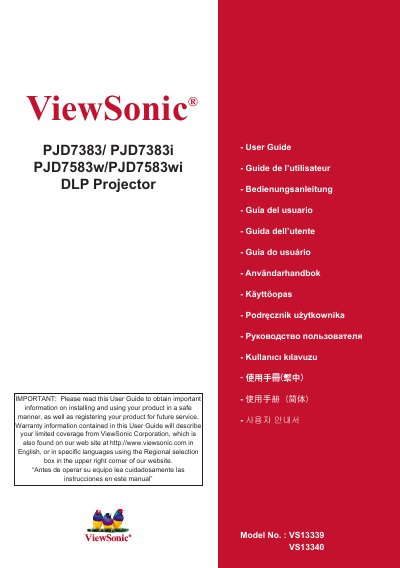

This is a User Guide for a ViewSonic ® model VS13339 VS13340 PJD7383/ PJD7383i PJD7583w/PJD7583wi DLP Projector.
This user guide covers everything needed to install, configure, and operate the ViewSonic PJD7383, PJD7383i, PJD7583w, and PJD7583wi DLP projectors. It includes safety warnings, unpacking instructions, projector features, connection options, image adjustment tools, LAN control, and service information.
The manual also contains detailed specifications, lamp replacement procedures, environmental requirements, and troubleshooting tips to help users achieve optimal performance and maintain the projector safely over its lifespan.
| Optical Resolution | 1024 x 768 (XGA) / 1280 x 800 (WXGA) |
|---|---|
| Display System | 1‑CHIP DMD |
| Lamp Power | 210 W |
| Power Supply | AC 100–240 V, 3.29 A, 50/60 Hz |
| Power Consumption (Max) | 329 W |
| Power Consumption (Standby) | < 1 W |
| Weight | 3.5 kg (7.7 lb) |
| Operating Temperature | 0 °C – 40 °C (sea level) |
| Operating Altitude | 0–1499 m (0 °C–35 °C) / 1500–3000 m (0 °C–30 °C with High Altitude Mode) |
Allow the projector to cool for approximately 45 minutes before removing the lamp assembly for replacement.
The projector operates on AC 100–240 V, 3.29 A, 50/60 Hz.
