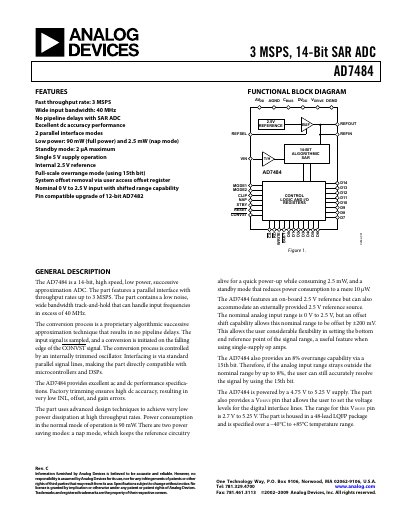

The AD7484 is a 14-bit SAR ADC with a conversion rate of 3 MSPS and an input bandwidth of 40 MHz. It offers fast throughput, excellent DC accuracy, and low power consumption.
The AD7484 is a 14‑bit successive‑approximation ADC offering up to 3 MSPS throughput and a wide 40 MHz input bandwidth. It operates from a single 4.75 V‑5.25 V supply and includes an on‑board 2.5 V reference with offset‑shift capability.
The device provides multiple power‑saving modes (normal, nap at 2.5 mW, and standby at 10 µW) and a parallel interface with configurable logic levels. It is supplied in a 48‑lead LQFP package and is rated for –40 °C to +85 °C operation.
| Throughput rate | 3 MSPS |
|---|---|
| Input bandwidth | 40 MHz |
| Resolution | 14 bits |
| Normal mode power consumption | 90 mW |
| Nap mode power consumption | 2.5 mW |
| Standby mode power consumption | 10 µW |
| Supply voltage range | 4.75 V – 5.25 V |
| Operating temperature range | −40 °C to +85 °C |
| Nominal analog input range | 0 V to 2.5 V |
The AD7484 can sample at up to 3 MSPS.
It operates from a single supply of 4.75 V to 5.25 V.
The input bandwidth is 40 MHz.
