AD9411 is a 10-bit, 170/200 MSPS, 3.3 V A/D converter with excellent linearity, low power consumption and high performance, which can be used for wireless and wired broadband communications, cable reverse path, communication test equipment, radar and satellite subsystems and other applications.
The AD9411 is a 10‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It operates up to 200 MSPS conversion rate, provides LVDS compatible digital outputs, and includes on‑chip reference and track‑and‑hold functions.

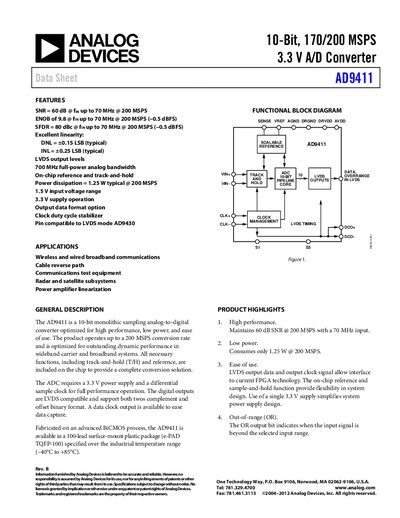

Key specifications include a 60 dB SNR at 200 MSPS, 1.25 W typical power dissipation, 3.3 V supply operation, and a 100‑lead TQFP package suitable for industrial temperature ranges (-40 °C to +85 °C). The datasheet provides detailed DC, AC, digital, and switching specifications, pin configurations, and ordering information.
| Resolution | 10‑bit |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 60 dB |
| Power Dissipation | 1.25 W typical @ 200 MSPS |
| Supply Voltage | 3.3 V (AVDD and DRVDD) |
| Package | 100‑lead TQFP‑100 (e‑PAD) |
| Operating Temperature Range | -40 °C to +85 °C |
It operates from a 3.3 V supply for both AVDD and DRVDD.
Typical power dissipation is 1.25 W when running at 200 MSPS.
