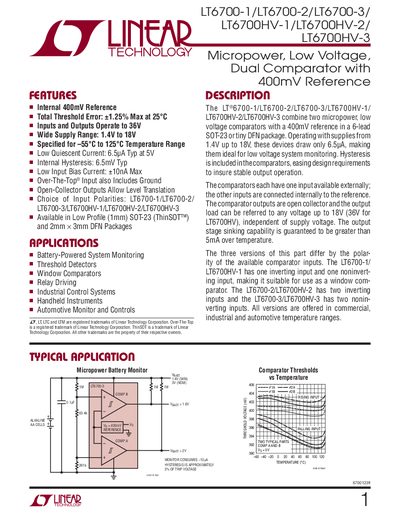

LT6700-1/LT6700-2/LT6700-3/LT6700HV-1/LT6700HV-2/LT6700HV-3 are low power, low voltage, dual comparators with a 400mV reference in a 6-lead SOT-23 or tiny DFN package. Operating with supplies from 1.4V up to 18V, these devices draw only 6.5μA, making them ideal for low voltage system monitoring. Hysteresis is included in the comparators, easing design requirements to insure stable output operation. The comparators each have one input available externally; the other inputs are connected internally to the reference. The comparator outputs are open collector and the output load can be referred to any voltage up to 18V (36V for LT6700HV), independent of supply voltage. The output stage sinking capability is guaranteed to be greater than 5mA over temperature. The three versions of this part differ by the polarity of the available comparator inputs. The LT6700-1/LT6700HV-1 has one inverting input and one noninverting input, making it suitable for use as a window comparator. The LT6700-2/LT6700HV-2 has two inverting inputs and the LT6700-3/LT6700HV-3 has two noninverting inputs. All versions are offered in commercial, industrial and automotive temperature ranges.
The LT6700 series comprises six micropower dual comparators (LT6700‑1/2/3 and LT6700HV‑1/2/3) that integrate a 400 mV reference and operate from 1.4 V to 18 V supply. They feature low quiescent current (6.5 pA typ), low input bias (≤10 nA), and open‑collector outputs suitable for level translation up to 36 V.
The devices are offered in thin‑profile SOT‑23 (1 mm) and 2 mm × 3 mm DFN packages, with temperature ranges from –55 °C to 125 °C. Typical applications include battery‑powered system monitoring, window comparators, relay driving, and automotive control systems.
| Reference voltage | 400 mV |
|---|---|
| Quiescent current | 6.5 pA typ at 5 V |
| Input bias current | ≤ 10 nA max |
| Supply voltage range | 1.4 V to 18 V |
| Operating temperature range | –55 °C to 125 °C |
| Output type | Open‑collector |
| Package options | 1 mm SOT‑23 (ThinSOT™) and 2 mm × 3 mm DFN |
Each LT6700 device includes an internal 400 mV reference.
The LT6700 draws only 6.5 pA typical quiescent current at a 5 V supply.
The parts are offered in a 1 mm low‑profile SOT‑23 (ThinSOT™) and a 2 mm × 3 mm DFN package.
The devices are specified for operation from –55 °C up to 125 °C.
