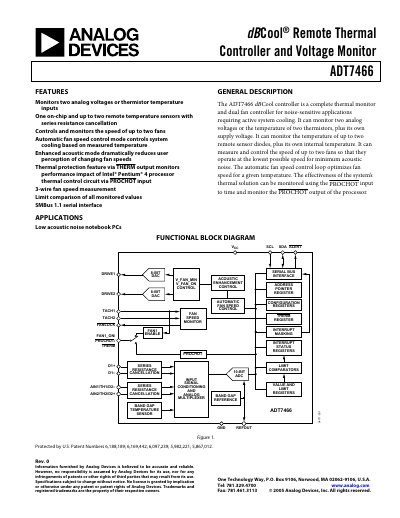

This document introduces the ADT7466 dBCool controller, a complete thermal monitor and dual fan controller for noise-sensitive notebook PCs.
The ADT7466 dBCool® remote thermal controller and voltage monitor provides dual‑fan control, temperature monitoring of two analog inputs or thermistors, and up to two remote diode sensors. It includes automatic fan speed control, acoustic enhancement mode, and thermal protection via a THERM output, all accessible through an SMBus 1.1 serial interface.
The manual covers specifications, absolute maximum ratings, pin configuration, functional description, serial bus timing, temperature measurement methods, fan drive and speed control, register maps, typical performance graphs, and ordering information. It also includes application circuits and test procedures for designers and engineers.
| Supply Voltage | 3.0 V – 5.5 V |
|---|---|
| Supply Current (interface inactive) | 1.4 mA |
| Local Sensor Accuracy | ±1 °C |
| Remote Diode Sensor Accuracy | ±1 °C |
| Drive Output Voltage Range | 0 V – 2.2 V |
| Reference Voltage Output | 2.226 V – 2.288 V |
| Maximum Number of Fans Controlled | 2 |
| Serial Interface | SMBus 1.1 |
The device operates from 3.0 V to 5.5 V supply voltage.
The ADT7466 can control up to two fans.
It uses an SMBus 1.1 serial interface.
The local sensor provides an accuracy of ±1 °C.
