The AD6657A is a quad 11-bit, 185 MSPS output data rate IF receiver with integrated noise shaping quantizer.
The AD6657A is an 11‑bit, 200 MSPS quad‑channel intermediate‑frequency receiver designed for high‑dynamic‑range, low‑power telecommunication applications. It integrates four high‑performance ADCs with a selectable noise‑shaping requantizer and provides LVDS digital outputs.

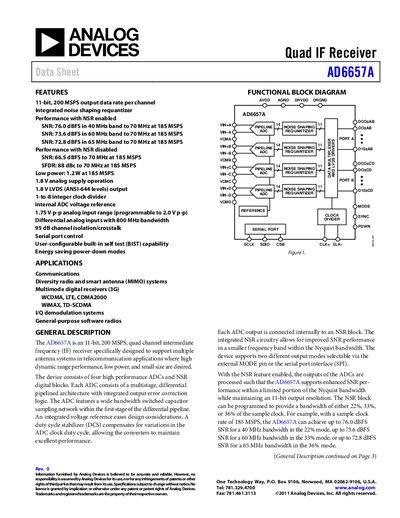

The handbook includes functional block diagrams, detailed electrical specifications, packaging information, and design guidelines for power, grounding, and SPI interfacing, helping designers implement the device in multi‑antenna systems and software‑defined radios.
| Resolution | 11 bits |
|---|---|
| Sample rate | 185 MSPS |
| Power consumption (full operation) | 1.2 W |
| SNR (NSR enabled, 40 MHz BW) | 76.0 dBFS |
| Analog input bandwidth | 800 MHz |
Both the analog (AVDD) and digital (DRVDD) supplies are 1.8 V.
The device contains four integrated analog‑to‑digital converters.
The AD6657A supports an analog input bandwidth up to 800 MHz.
