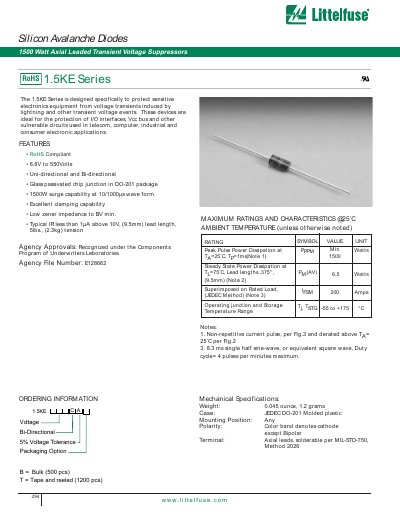

The document introduces the features and characteristics of Silicon Avalanche Diodes 294 and 1.5KE series products, which are designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus, and other vulnerable circuits used in telecom, computer, industrial, and consumer electronic applications.
The 1.5KE Series is designed to protect sensitive electronic equipment from voltage transients caused by lightning, switching, and other surge events. It is suitable for VO interfaces, Vcc buses, and other vulnerable circuits in telecom, computer, industrial, and consumer applications.
Key features include RoHS compliance, a voltage rating from 6.8 V to 550 V, both uni‑directional and bi‑directional options, a 1500 W surge capability, low zener impedance, and a compact DO‑201 axial leaded package. Mechanical data list a weight of 0.045 oz (1.2 g) and a molded plastic case.
| Peak Pulse Power Dissipation | 1500 W @ 10/1000 µs |
|---|---|
| Voltage Rating (Vrwm) | 6.8 V to 550 V |
| Maximum Surge Current | 200 A |
| Weight | 0.045 oz (1.2 g) |
| Case Style | DO‑201 molded plastic |
| RoHS Compliance | Yes |
The series can handle a 1500 W surge at a 10/1000 µs waveform.
Yes, the 1.5KE series is RoHS compliant.
They are offered in bulk (500 pcs) and tape‑and‑reel (1200 pcs) packaging.
Typical leakage current is less than 1 pA above 10 V.
