This product is a 600W transient voltage suppressor with a range of 6.8 to 550 volts, and can protect sensitive electronic equipment from lightning and other transient voltage events.

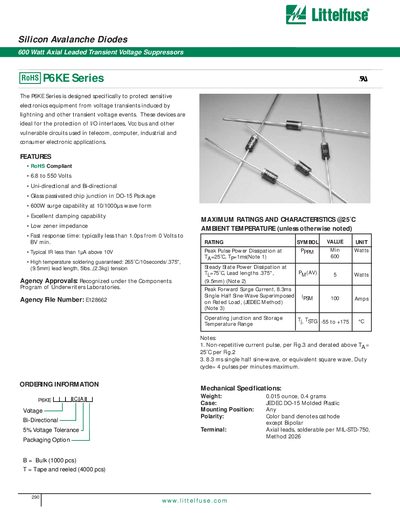

The P6KE Series silicon avalanche diodes protect sensitive electronic equipment from voltage transients caused by lightning, switching, and other surge events. They are suitable for I/O interfaces, VCC buses, and other vulnerable circuits in telecom, computer, industrial, and consumer electronics.
Key features include 600 W surge capability (10/1000 µs waveform), fast response (<1 ps), low Zener impedance, and RoHS compliance. The devices are offered in uni‑directional and bi‑directional versions, packaged in DO‑15 (JEDEC) axial leaded packages with a standard 0.375 in (9.5 mm) lead length. Ordering options include bulk (1000 pcs) and tape‑and‑reel (4000 pcs).
| Maximum Reverse Voltage (VBR) | 6.8 V to 550 V |
|---|---|
| Lead Length | 0.375 in (9.5 mm) |
They can handle a 600 W surge at a 10/1000 µs waveform.
The diodes are offered in bulk (1000 pcs) and tape‑and‑reel (4000 pcs) packaging.
The standard lead length is 0.375 in (9.5 mm).
Yes, they are listed as RoHS compliant.
