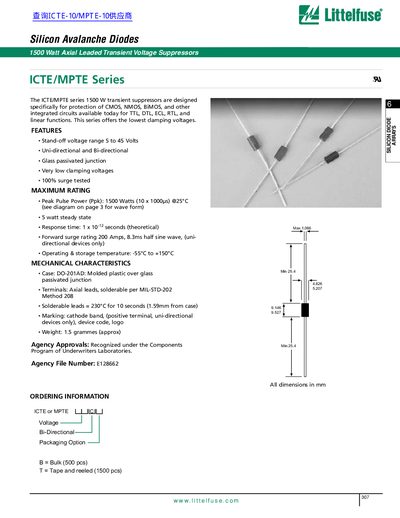

The ICTE/MPTE series 1500 W transient suppressors are designed specifically for protection of CMOS, NMOS, BiMOS, and other integrated circuits available today for TTL, DTL, ECL, RTL, and linear functions. This series offers the lowest clamping voltages.
The ICTE/MPTE series provides 1500 W axial‑lead silicon avalanche diodes for protecting CMOS, NMOS, BiMOS and other ICs. The devices offer low clamping voltage, stand‑off voltage from 5 V to 45 V, and both uni‑directional and bi‑directional options.
Key features include a peak pulse power of 1500 W, forward surge rating of 200 A (8.3 ms half‑sine), operating temperature from –55 °C to +150 °C, and a DO‑201AD molded‑plastic case with solderable axial leads. Ordering options are bulk (500 pcs) or tape‑and‑reel (1500 pcs).
| Stand‑off voltage range | 5 to 45 V |
|---|---|
| Peak Pulse Power (Ppk) | 1500 W @25 °C |
| Forward surge rating | 200 A, 8.3 ms half‑sine |
| Operating & storage temperature | -55 °C to +150 °C |
| Case type | DO‑201AD molded plastic over glass |
The devices are rated for a peak pulse power of 1500 W at 25 °C.
The stand‑off voltage ranges from 5 V to 45 V.
