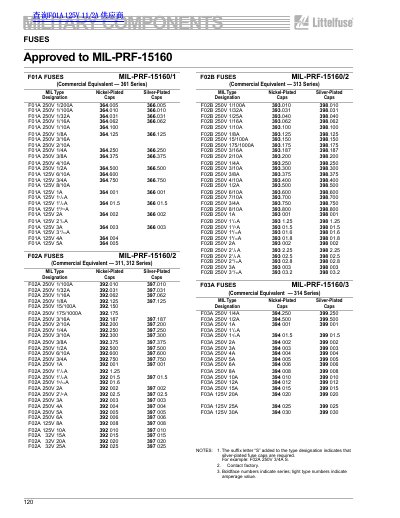

This is a specification sheet for MIL-PRF-15160 F01A and F02A fuses.
The document provides detailed specifications for a range of military‑grade fuses approved to MIL‑PRF‑15160. Each fuse series (F01A, F02A, F03A, F09A, F60C, etc.) is listed with its voltage rating, current rating, and corresponding catalog numbers for both nickel‑plated and silver‑plated caps.
Additional sections cover fuses approved to MIL‑PRF‑23419 and various cartridge and axial‑lead fuse families, as well as fuse holder types approved to MIL‑PRF‑19207. Notes explain the meaning of suffix letters such as “S” for silver‑plated caps.
| F01A 250V 1/200A rating | 1/200A |
|---|---|
| F02A 250V 1/4A rating | 1/4A |
| F60C 500V 1A rating | 1A |
| FM02A 125V 1A rating | 1A |
The suffix “S” indicates that silver‑plated fuse caps are required.
It is rated for 250 V.
It is the commercial equivalent of the BLN series.
