This document describes the features and characteristics of the B37979N series multilayer ceramic capacitors, including good thermal stability, high insulation resistance, low dissipation factor, etc. The product is suitable for resonant circuits, filter circuits, timing elements, etc.

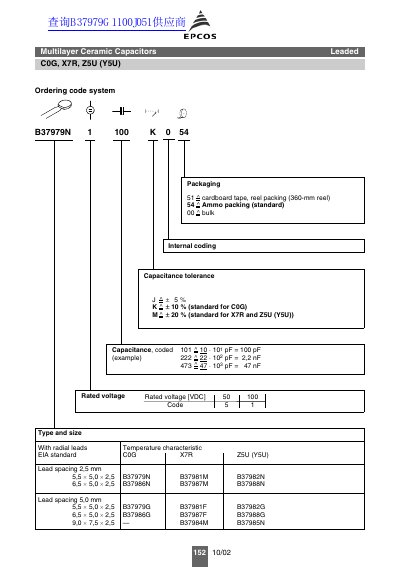

This handbook provides detailed specifications, ordering codes, and packaging options for EPCOS B37979G multilayer ceramic capacitors. It covers the C0G, X7R and Z5U (Y5U) dielectric classes, including capacitance ranges, tolerance options, rated voltages, and mechanical dimensions.
The document also lists typical electrical characteristics such as temperature coefficients, dissipation factor, insulation resistance, and operating temperature range, together with tables of ordering codes for different lead spacings and voltage ratings.
| Rated voltage | 50 VDC, 100 VDC |
|---|---|
| Temperature characteristic | C0G, X7R, Z5U (Y5U) |
| Dissipation factor (max) | <1.0 × 10⁻³ |
| Temperature coefficient (C0G) | 0 ppm/K |
| Operating temperature range | -55 °C to +125 °C |
The B37979G series is offered with rated voltages of 50 VDC and 100 VDC.
