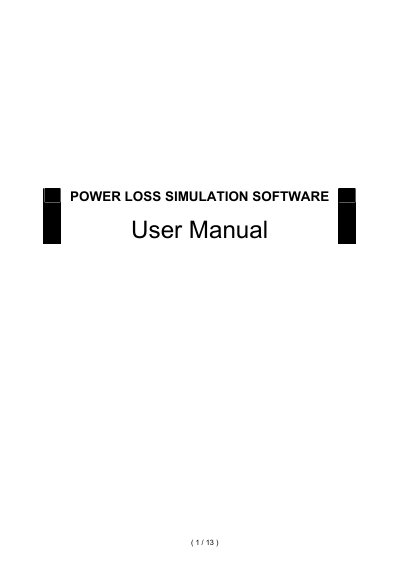

Mitsubishi Electric Melcosim Software User Manual

This is a user manual for Mitsubishi Electric power module loss simulation software

Brand: Power
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 757 KB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: C2CB7181150778C91386930B54C6BC71
PDF: Mitsubishi Electric Melcosim Software User Manual PDF

About this manual

This manual describes the Mitsubishi Power Loss Simulation Software (Melcosim Ver.4.04). It covers the software’s features, how to download and install it, and the required PC specifications. Detailed guidance is provided for setting up simulation conditions, running calculations, and interpreting results.

The document also explains the calculation methods for IGBT and diode power loss, temperature rise examples, and how to use the graph display functions. Safety notices and usage limitations are included at the end of the manual.

What's inside

Feature of Mitsubishi power module loss simulation
Setup and Execution
Operation Guidance
Condition Window
Range of input data
Simulation Essentials
Temperature Rise Calculation Example
Graph Display Function
Notice for Safe Designs

Specifications

Minimum Memory	64 MB or above
Minimum Disk Space	20 MB free
Supported Operating Systems	Windows 2000, Windows XP, Windows Vista
VCC Input Range (example modules)	≤400 V for 600 V modules, ≤800 V for 1200 V modules, ≤1100 V for 1700 V modules

Frequently asked questions

How can I download the Power Loss Simulation Software?

The software can be downloaded for free from the Mitsubishi Electric website after filling out the information table and clicking the Submit button.

What does the program display when it starts?

A message window pops up showing the number of remaining days the software is valid.
